Suited for both residential and commercial applications.

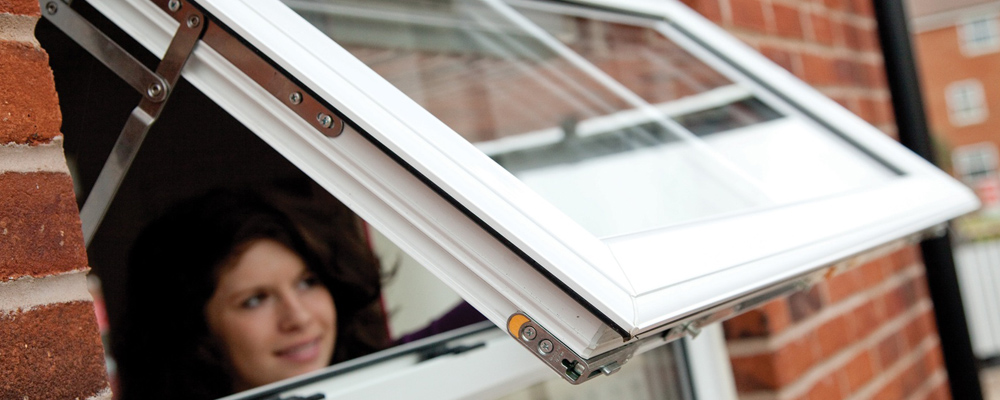

Tilt Before Turn windows provide an ideal solution for high rise applications where internal glazing and ease of cleaning are essential.

Windows are available in Tilt Before Turn, Tilt or Turn only


Design Features

58mm or 70mm frame depth to accommodate varying types of application
Internally beaded for ease of site glazing on high-rise applications
Matches the sight line details for the Commercial Casement windows
A clean, flat appearance to give a true contemporary aesthetic.
Integrated deep head profiles for ease of trickle ventilation
Designed with a traditional Euro groove to accommodate concealed hardware
Double or Triple glazed options


Applications

New build or refurbishment projects
Light, medium and heavy duty commercial
Residential and social housing projects
Hotels, office blocks and industrial buildings
Schools, colleges and universities
Low, medium and high rise


Optimum Performance

Level 4 - Code for Sustainable Houses
The system has been tested to BS4873 & PAS024
Air Permeability - 600pa
Water Tightness - 600pa
Wind Resistance - 2400pa
U Value 1.5 w/m2 K (DG Unit)
Window Energy Rating


Options

Accommodates 24mm - 32mm DGU’s for thermal and acoustic performance
Dedicated fixing straps for ease of installation

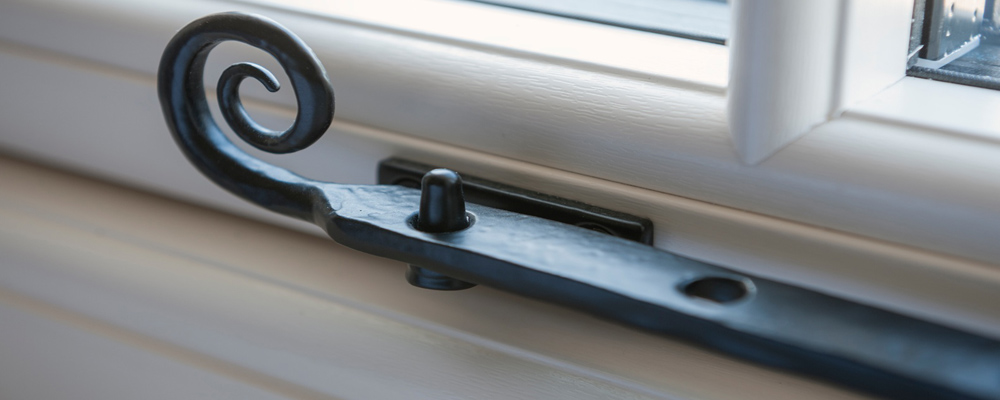

Full range of customisable hardware available
Available in single and dual colour options including metallic finishes
